Motors – SyncDrive Sport, 70Nm, Powered by Yamaha (25 km/h)
Ekrāns – RideControl Dash, full color LCD screen
Akumulators – EnergyPak Smart 500, 36V Integrated Lithium-IonEnergyPak Plus range extender compatible (except XS size)
Rāmis – ALUXX Aluminum, Overdrive 1½ – 1⅛” Head Tube, 141mm Boost QR, ISS,EnergyPak Plus Range Extender Compatible, Integrated KS18 Kickstand Mount
Dakša – SR Suntour XCR 34 Boost Air LOR 29/27.5, 120mm travel, Tapered 1½ – 1⅛” steerer, lockout
Stūre – Giant Connect TR Riser 31.8×690, 750mm (XS-S: 690 / M-L: 750)
Stūres rokturi – Liv Comfort Ergo Microtech Plus
Iznesums – Giant Contact
Stute – Giant 30.9mm, 2-bolt Micro Adjustable, Forged Aluminium
Sēdeklis – Liv Sport
Pārslēdzēju rokturi – Shimano Deore, 1 x 12 speed
Aizmugurējais pārslēdzējs – Shimano Deore, 12-speed, Shadow+
Bremzes – Shimano MT400, Hydraulic Disc, 203mm[F], 180mm[R]
Bremžu rokturi – Shimano Deore MT401
Kasete – Shimano CS-M6100-12, 10-51T, 12-speed
Ķēde – KMC X10S
Klaņi – FSA Comet E-Bike crank arm setFSA MegaTooth Direct-mount 1X steel 36T
Aploces – Giant XCT 29/27.5 Tubeless Ready 25mm e-bike optimized
Rumbas – Shimano MT410 Boost, Center-Lock, [F] 110×15, Shimano MT401-B [R] 141mm OLD, QR
Spieķi – Stainless steel
Riepas – Maxxis Rekon 27.5×2.4″” / 29×2.4″”, Foldable, TLR, EXO, 60 TPI (XS-S: 27.5, M-L: 29er)
Maksimālais attālums ar vienu uzlādi – 55-180 km (atkarībā no braucēja svara, ekipējuma, bagāžas, ceļa apstākļiem, laikapstākļiem u.c. faktoriem)

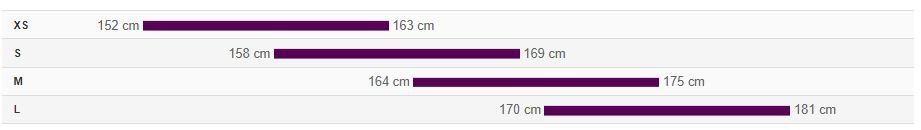

Rāmja izmērs attiecībā pret braucēja augumu:
| XS |
152-163 cm |
| S |
158-169 cm |
| M |
164-175 cm |
| L |
170-181 cm |
